Paddlewheel Aerator Prom-3-6L
Paddlewheel Aerator Prom-3-6L
| Description | Item No. | Std Oxygen Transfer Rate | Std Aeration Efficiency | Noise DB(A) | Power: | Voltage: | Frequency: | Motor Speed: | Reducer Rate: | Pole | INS.Class | Amp | Ing.Protection |
| 6 Paddlewheel Aerator | PROM-3-6L | ≧4.5 | ≧1.5 | ≦78 | 3hp | 220v-440v | 50hz / 60hz | 1440 / 1760 RPM/Min | 1:14 / 1:16 | 4 | F | 40℃ | IP55 |
| Item No. | Power | Impeller | Float | Voltage | Frequency | Motor Speed | Gearbox Rate | 20GP/40HQ |
| PROM-1-2L | 1hp | 2 | 2 | 220v-440v | 50hz | 1440 r/min | 1:14 | 79 / 192 |
| 60hz | 1760 r/min | 1:17 | ||||||
| PROM-2-4L | 2hp | 4 | 3 | 220v-440v | 50hz | 1440 r/min | 1:14 | 54 / 132 |
| 60hz | 1760 r/min | 1:17 | ||||||
| PROM-3-6L | 3hp | 6 | 3 | 220v-440v | 50hz | 1440 r/min | 1:14 | 41 / 100 |
| 60hz | 1760 r/min | 1:17 | ||||||
| PROM-3-6L | 3hp | 6 | 4 | 220v-440v | 50hz | 1440 r/min | 1:14 | 39 / 96 |
| 60hz | 1760 r/min | 1:17 | ||||||
| PROM-3-8L | 3hp | 8 | 4 | 220v-440v | 50hz | 1440 r/min | 1:14 | 35 / 85 |
| 60hz | 1760 r/min | 1:17 | ||||||
| PROM-4-12L | 4hp | 12 | 6 | 220v-440v | 50hz | 1440 r/min | 1:14 | |
| 60hz | 1760 r/min | 1:17 |

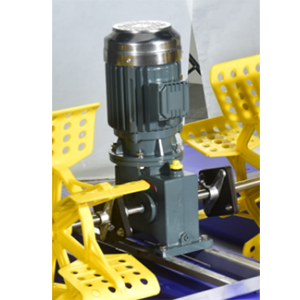

When the motor starts running, impellers will rotate and touche water surface, it will press air into water and therefore increase some oxygen in water.
The most importance is working impellers can make sufficient water splash and strong water current. Large amount of splash will take air into water and enrich obviously dissolved oxygen in water. Meantime, water waves and current will eliminate harmful substances like ammounia, nitrite, hydrogen sulfide, etc out of water and finally clean water.
All brand new materials produced components to make sure our customers receive high quality items. It can be used both on freshwater and seawater.
1.High efficiency and saving over 20% electric energy than traditional models.
2.Mechanical seal is available to against oil leak pollution.
3.Built-in protector is available to avoid motor being burnt accidentally.
4.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength.
5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.
6.The flexible gearing is fixed by the stainless wheel bolt.
7.Easy installation and maintenance.
8.Stainless steel frame is sturdy with no deformation and high durability.
| Description | FLOATS | |||||||
| Material: | 100% new HDPE material ， | |||||||
 |
Made of high density HDPE, one-piece design with superior heat-resistant and impact-resistant capability. | |||||||

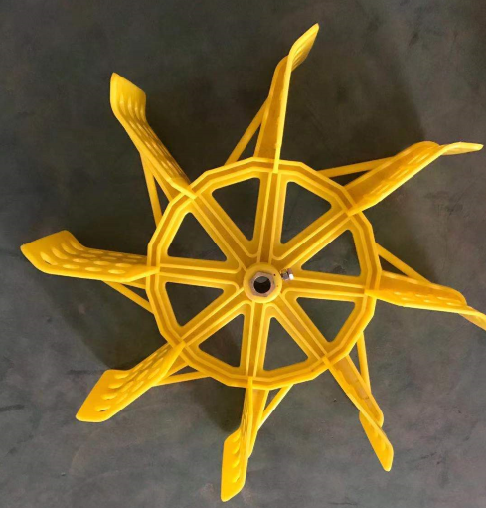

| Description | IMPELLER | |||||||
| Material : | 100% new PP material | |||||||
 |
. One-piece design with fortified structure made of non-recycled polyproylene material, plus with the fully copper core struture, which makes the paddle sturdy, tough, impact-resistant, and less prone to fracture. . Forward-tilting paddle design boost the paddle’s propelling ability, splashes more water sparkles and genertes stronger current. . 8-pcs-vane paddle design is more superior than 6-pcs-design of a stainless steel paddle and allows more frequent splashes and better DO supply. |
|||||||

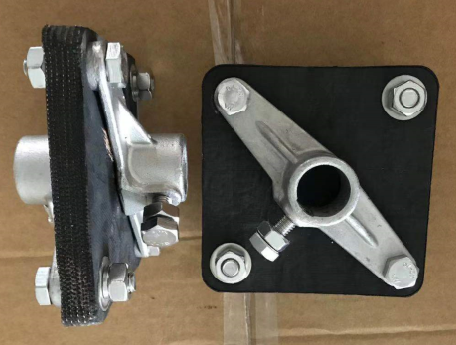

| Description | MOVABLE JOINTS | |||||||
| Material: | Rubber and 304#stainless steel | |||||||
 |
. High grade stainless frame have the advantage on rust-anti. .Rim supported stainless hub offers a good support on the force. . Thick rubber is as sturdy and tough as that of a tire. |
|||||||

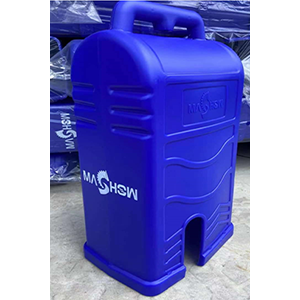

| Description | MOTOR COVER | |||||||
| Material : | 100% new HDPL material | |||||||
 |
Made of high density HDPE, protect motor from the weather changing. With an outlet hole, give the heat dissipation to motor, | |||||||
Our items have national accreditation requirements for qualified, high quality products, affordable value, was welcomed by people today all over the world. Our goods will continue to enhance within the order and look forward to cooperation with you, Should any of these products be of interest to you, please let us know. We are going to be content to offer you a quotation up on receipt of your detailed needs.
