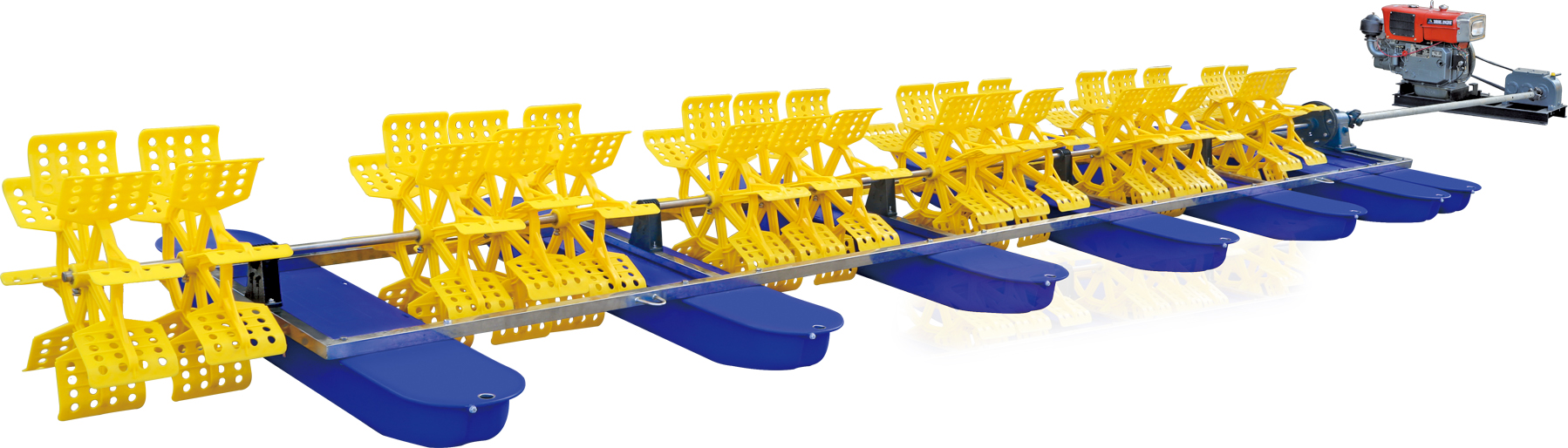

Paddlewheel Aerator Rrom-5-16l
Paddlewheel Aerator Rrom-5-16l
| Item No. |
Power |
Voltage/ |
Aeration Area |
Power |
Oxygen |
Noise dB(A) |
40HQ |
| MD-12 |
12 |
8-15 |
≥ 2.5 |
≥8.5 |
≤90 |
60 |
|
| MD-16 |
16 |
8-15 |
≥2.5 |
≥8.5 |
≤90 |
60 |
Description: FLOATS
Material: 100% new HDPE material
Made of high density HDPE, one-piece design with superior heat-resistant and impact-resistant capability.
Description: IMPELLER
Material: 100% new PP material
One-piece design with fortified structure made of non-recycled polyproylene material, plus with the fully copper core struture, which makes the paddle sturdy, tough, impact-resistant, and less prone to fracture.
Forward-tilting paddle design boost the paddle’s propelling ability, splashes more water sparkles and genertes stronger current.
8-pcs-vane paddle design is more superior than 6-pcs-design of a stainless steel paddle and allows more frequent splashes and better DO supply.
Description: MOVABLE JOINTS
Material: Rubber and Iron and stainless
High grade stainless screw have the advantage on rust-anti.
Thick rubber is as sturdy and tough as that of a tire.
Description: Triangle Support
Material: Iron
Big Size with thick design in purpose to increase the lifetime.
How many units of paddlewheel aerators to be used in the shrimp ponds ?
1. According to the stocking density :
1HP should be used 8 units in one HA pond if the stocking is 30 pcs / square meter.
2. According to the harvesting tons :
If the harvest expected is 4 Tons per HA should be installed in the pond 4 units of 2hp paddle wheel aerators ; the other words is 1 Ton / 1 unit.
