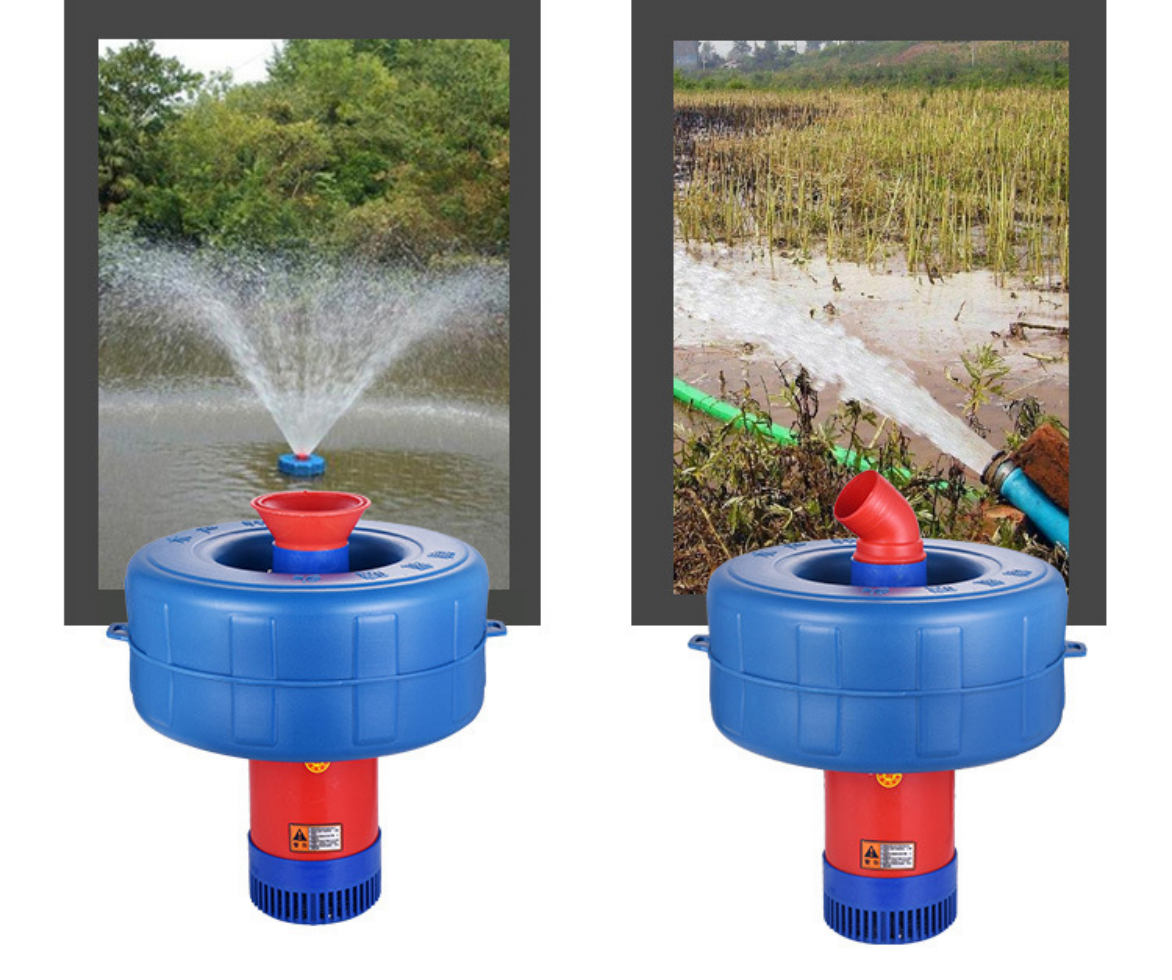

Floating Aerator 3.0KW/ 2.2KW / 1.5KW / 1.1 KW
Floating Aerator 3.0KW/ 2.2KW / 1.5KW / 1.1 KW
| Item No. | Power | Voltage | Frequency | Max.Head ≥M | Max.Flow ≥M | Efficiency | Inner Dlameter mm(inch) |
| MF-3.0 | 3.0KW | 220-440V | 50HZ | 5 | 100 | 49 | 150(6 inch) |
| MF-2.2 | 2.2KW | 220-440V | 50HZ | 4 | 65 | 46 | 100(4 inch) |
| MF-1.5 | 1.5KW | 220-440V | 50HZ | 6 | 30 | 47.5 | 80(3 inch) |
| MFD-1.1 | 1.1KW | 220-440V | 50HZ | 7 | 30 | 48.9 | 80(3 inch) |
* Pls check the spare parts leaflet for detailed specifications
Description: Spray Head
Material: 100% new ABS material
ABS material for a more strong and reliable usages
Description: Floats
Material: 100% new PP material
Thick PP material, anti-aging, can be in water for long time.
Description: Spray Head
Material: ABS and 304#stainless steel
304 screw for anti-rust. and adjustble for the spray volume.
Description: Impeller
Material: 100% new ABS material
ABS with better balance on the flexible and strongness, can make the motor cooling system working durability.
Description: BOTTOM
Material: 100% new ABS material
Screen design, can stop the water plant enter into, ensure the water inlet working well.
How many units of paddlewheel aerators to be used in the shrimp ponds ?
1. According to the stocking density :
1HP should be used 8 units in one HA pond if the stocking is 30 pcs / square meter.
2. According to the harvesting tons :
If the harvest expected is 4 Tons per HA should be installed in the pond 4 units of 2hp paddle wheel aerators ; the other words is 1 Ton / 1 unit.
How to maintain the paddlewheel aerator ?
MOTOR:
1. After each harvest, sand off and brush away the rust on the surface of motor and repaint it. This is to prevent corrosion and enhance heat dissipation.
2. Make sure the voltage is stable and normal when the machine is in operation. This is to prolong the life of motor.
REDUCER:
1. Replace gear lubrication oil after the machine being used for the first 360 hours and once every other 3,600 hours later. This is to reduce the friction and prolong the life of reducer. Gear oil #50 is being used and standard capacity is 1.2 liters. ( 1 gallon = 3.8 liters )
2. Maintain surface of the reducer as that of motor.
HDPE FLOATERS:
Clean off the fouling organisms on the floaters after each harvest. This is to maintain the normal submergance depth and optimal oxygenation.
